3EA ‘CLEARVIEW’ 75MM
EXTRUDED ALUMINIUM SHUTTER

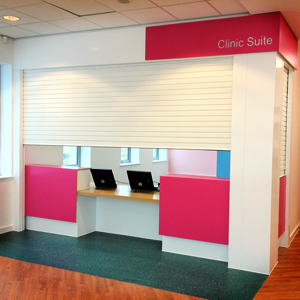

Eye catching appearance particularly suitable for shopfront or counter-top application offering solid or see-through format. Acrylic windows prevent ingress of dust. If the acrylic windows are left out they will provide a desired amount of ventilation. Two point locking at waist height, in bottom rail, or both, offers high security.
Lath – 75mm x 1.5mm extruded aluminium fitted to every second slat. Slats can be slotted as required with slots 225mm x 42mm which can be fitted with acrylic panes 1.5mm thick.
Side Guide (Track) – Exclusive ‘Austral Monsoon’ extruded aluminium section with built in PVC buffer (see diagram).
Bottom Rail – 84mm x 31mm extruded aluminium section.
Brackets – Fabricated from mild steel.
Roller Drum – 100mm or 177mm dia steel tube encasing helical coil springs of super grade spring wire.
Operation – Hand operation with spring counterbalance. Optional hand chain or electric motor drive with push button control available.
Accessories – Centre mullions, corner mullions, fascias etc are available.
Locking – Internal or external key operated two way two point locking at waist height or on bottom rail or both for extra security.
